Fiber laser cutting

Atarashii FL-5911E · FL59118LN II · Laser GAR Series

Three fiber laser cutting systems, all under the Atarashii Laser name. Every one of them is specified to ±0.03 mm positioning and ±0.02 mm repeat positioning, and every one runs on a 380 V supply.

Materials

Carbon steelStainless steelBrassAluminium
Fiber laser cutting
3 models

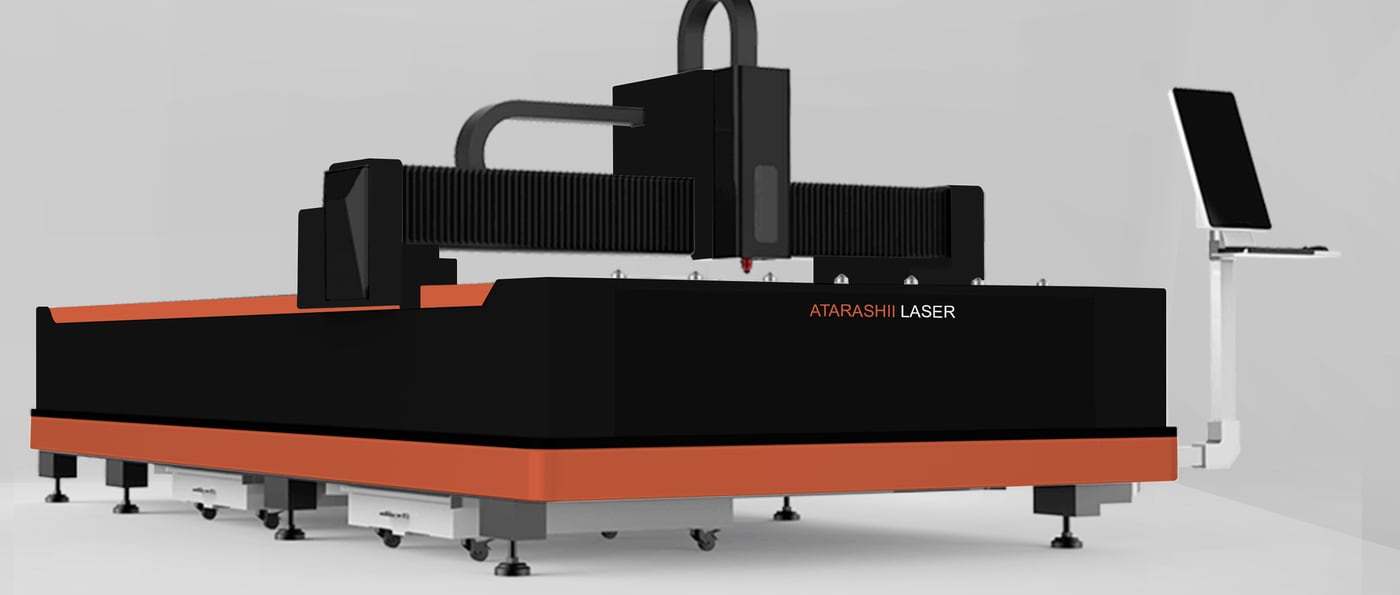

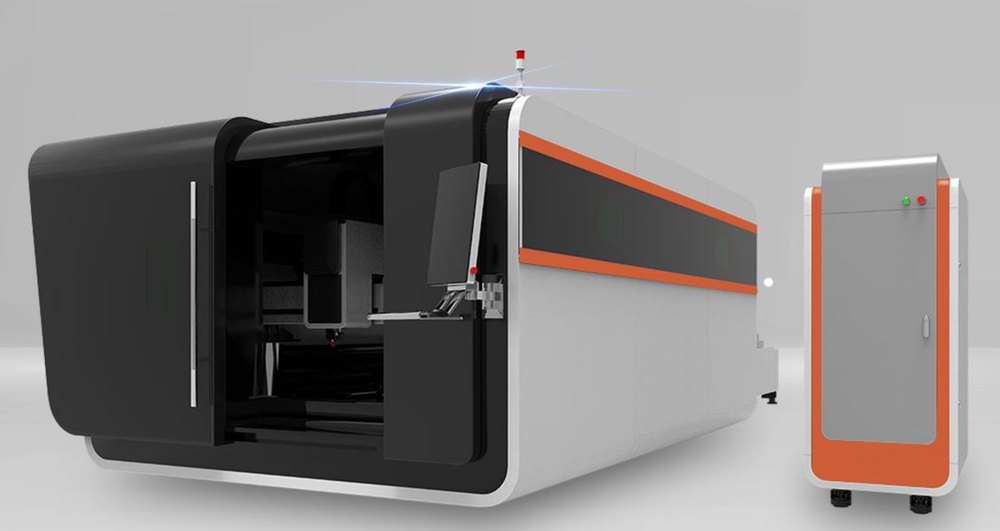

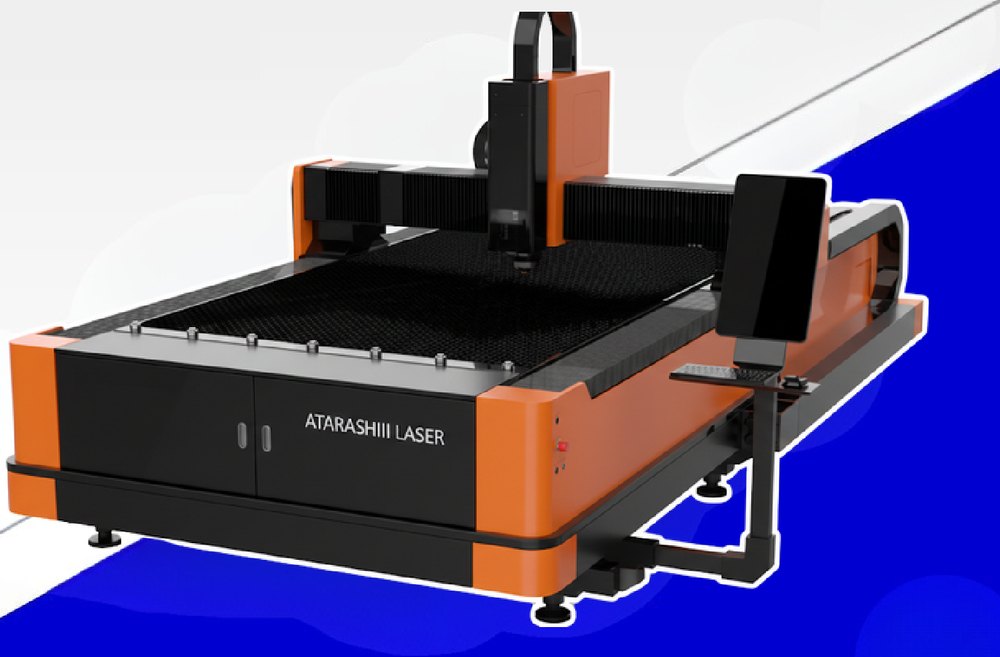

Atarashii FL-5911EAtarashii LaserAtarashii FL-5911EFiber laser cutting systemSpecifications →Atarashii FL59118LN IIAtarashii LaserAtarashii FL59118LN IIFiber laser cutting systemSpecifications →Atarashii Laser GAR SeriesAtarashii LaserAtarashii Laser GAR SeriesDouble platform plate and pipe laser cutterSpecifications →

Choosing between them

  1. 01

    Start with what you are cutting. The FL-5911E and the FL59118LN II cut flat sheet. The GAR Series cuts sheet and tube on the same machine - round tube to 320 mm, square tube to 240 mm across the flat, in lengths up to 6 m. Nothing else here cuts tube.

  2. 02

    Then bed size. The FL-5911E works on 1300 x 2500 mm. The FL59118LN II is 1520 x 3050 mm. The GAR Series is ordered in one of four beds, from 1500 x 3000 mm up to 2500 x 8000 mm.

  3. 03

    Then laser power. The FL-5911E is specified at 1000, 1500, 2000 or 3000 W, and the FL59118LN II from 1500 to 6000 W. The GAR Series runs from 2000 W to 12000 W. None of the three sheets prints a cutting-thickness table, so ask us what your material and thickness needs rather than reading it off the wattage.

  4. 04

    Weight and supply decide where a machine can stand. The FL-5911E and the FL59118LN II are both about 1800 kg. The GAR Series is 8100 kg and draws 45 kW, and it is 9.5 m long - that is a foundation and a supply question before it is a machine question.

  5. 05

    The GAR Series is the enclosed one, behind CE-standard laser glass, and its two platforms swap in 15 seconds so the machine keeps cutting while the last sheet is unloaded. The other two are open-table machines.

Every figure above is taken from the manufacturer specifications published on the machine pages, each of which names its own source.

Also in the range

Laser weldingPressbrake bendingCNC machining3D printing & scanningLaser engraving & digital cuttingMeasuring & inspection

What customers say

Read all testimonials →

Philippine Science High School - Bicol Region Campus

“As one of the end-users of the equipment sold by Atarashii Technologies, I can gladly say that I am a very satisfied customer. Other than providing high quality equipment, they go the extra mile and continue to assist their customers with their reliable and helpful after sales support services. They did not hesitate to help last year when our school's 3D printers had some issues. We were producing face shields that we donated to healthcare workers and frontliners all over the region, and because we were using the printers for extended hours every day for over a month, it was inevitable that we experienced some troubleshooting and maintenance issues. Fortunately, Atarashii, especially Armae, was very helpful in helping us resolve these problems. All in all, Atarashii has high quality products and amazing customer service! Keep up the good work and more power to you, Atarashii!”
John Rhayel S. Delos Santos · FabLab Manager

Shewak's Engravables Inc.

“Shewak's Engravables Inc. has been a very happy client of Atarashii Technologies Inc. for many years. Ryan and his whole team are the best, very professional, friendly, accommodating and knowledgeable in their field. Not only do they go above and beyond to serve us but they do it with professionalism and attention to detail and they make sure that they meet our needs. We are blessed to have them as one of our major suppliers and look forward to continuing a very happy business relationship with them.”
Ms. Renu Sadarangani · Owner

Form ATI-QR-01 · request for quotation

Ask about fiber laser cutting

Tell us what you can - the material, the size, the thickness. Still deciding? Say that instead and an engineer will work it through with you.
